Pulsenics System Software

The web app Pulsenics and its clients use to manage their testing hardware, run experiments, control probes and analyse electrochemical data.

Overview

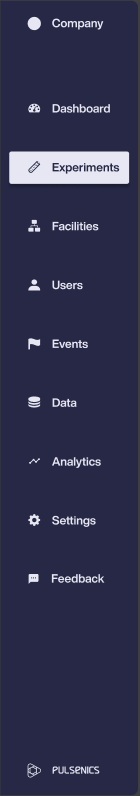

Side navigation with Experiments selected: Company, Dashboard, Experiments, Facilities, Users, Events, Data, Analytics, Settings, Feedback
Live Experiments table listing experiments with facility, test station, probe, start and end dates, a progress bar and open, duplicate and delete actions Hardware Selection tree from Facilities to Test Stations, Probes and Channels, with one probe selected and unrelated branches dimmed
Experiments view, composed from the component library
  • ClientPulsenics, Toronto
  • ProductWeb app for running experiments and managing probes
  • TeamTwo designers: me and Marc Varone
  • My roleProduct design and the UI system, from the ground up
  • StatusCurrent version of the product

The brief

Design a tool that lets Pulsenics and its clients run experiments and manage every probe they have connected.

Pulsenics makes electrochemical impedance spectroscopy (EIS) hardware: probes that test the health and performance of batteries, fuel cells and electrolyzers without damaging them. The software sits between that hardware and the people using it. It has to know what is plugged in where, start and stop measurements, and turn a stream of readings into something an engineer can act on.

Users

Technical teams

Engineers and researchers who know the chemistry and want precise control, not hand-holding.

Data

Dense and continuous

Measurements stream in from many cells at once, across frequency and time, for hours or days.

Hardware

Physically nested

Facilities hold test stations, test stations hold probes, and probes connect to cells through channels.

One flow, end to end

Everything in the app supports one sequence, from plugging in hardware to explaining what the data shows.

  1. Pick the hardware
  2. Start the experiment
  3. Control the probe
  4. Watch it live
  5. Mark what happened
  6. Analyse the results

Key design decisions

01

Mirror the physical setup

Hardware is chosen from a connected tree that matches how the equipment is actually wired: Facilities, then Test Stations, then Probes, then Channels, with each channel showing how many cells are connected.

Selecting any node dims every branch it doesn't belong to, so it's always clear which cells an experiment will touch. Search sits on top for setups too large to scan.

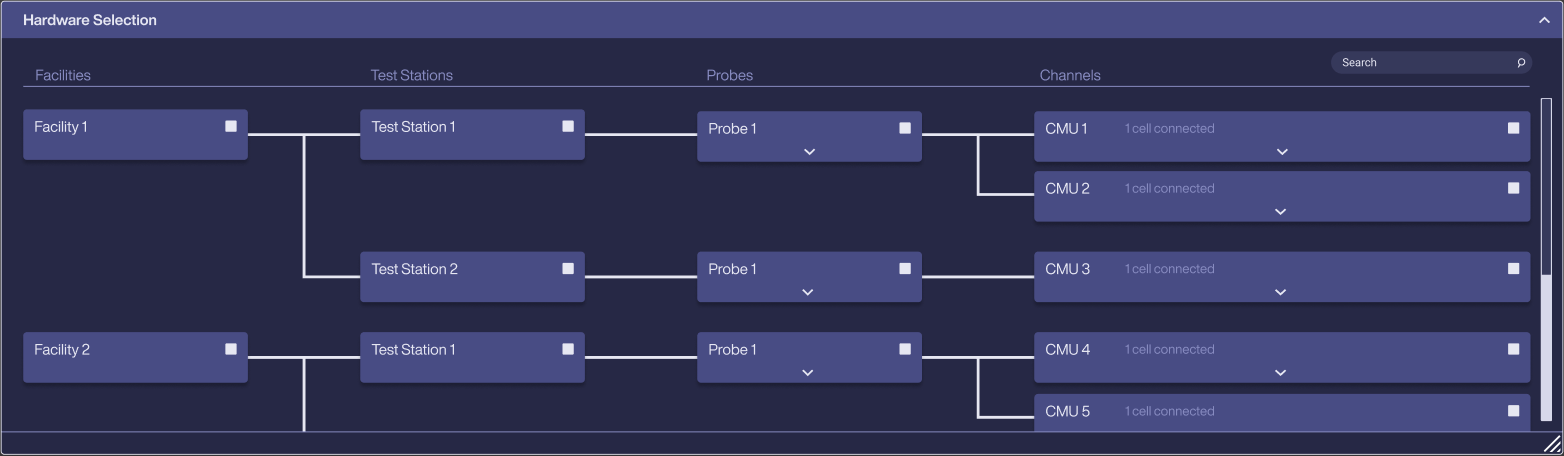

Hardware Selection tree: two facilities branching into test stations, probes and CMU channels, each showing 1 cell connected The same tree with Probe 1 selected and every unrelated branch dimmed
The full tree, and the focus state when a probe is selected
02

Make starting an experiment one decision

Once hardware is picked, starting is a small pop-up: a start and end time, with two shortcuts for the most common cases, Start Now and No specified end time. Long-running tests don't need a made-up end date.

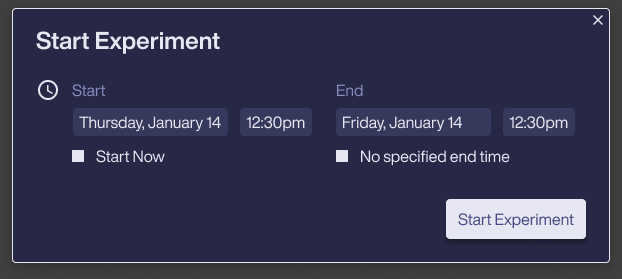

Start Experiment pop-up with start and end date and time fields, Start Now and No specified end time checkboxes, and a Start Experiment button
Start Experiment
03

Give direct control of the instrument

Probe controls expose what the hardware actually does: choose a probe, set the time between samples, switch between galvanostatic and potentiostatic mode, and enter up to ten frequency and amplitude pairs.

Send Controls and a red Stop Sampling sit together at the end, so the safe way out is always visible.

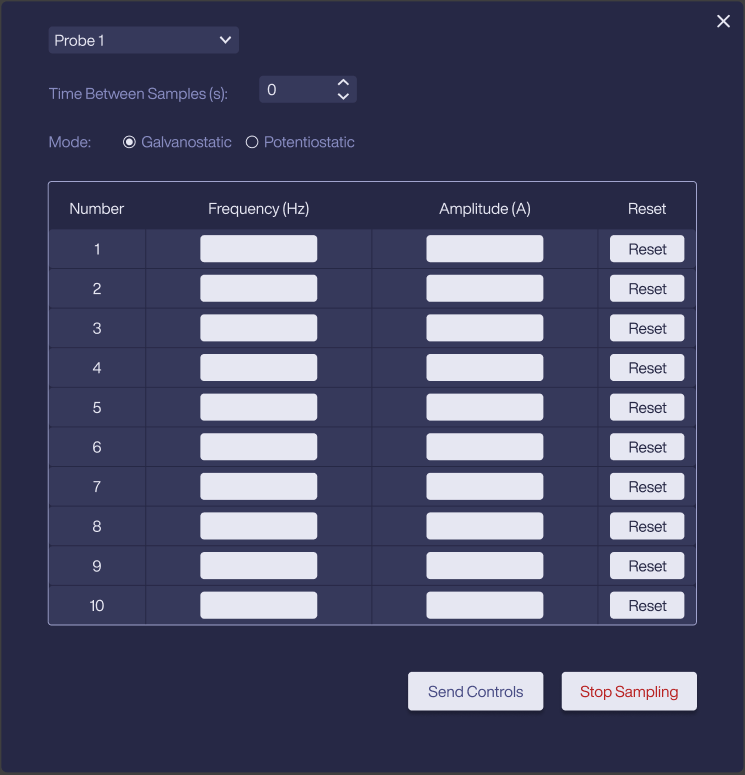

Probe controls: probe dropdown, time between samples, galvanostatic or potentiostatic mode, a table of ten frequency and amplitude rows with reset buttons, and Send Controls and Stop Sampling buttons
Probe controls
04

Keep running work in view

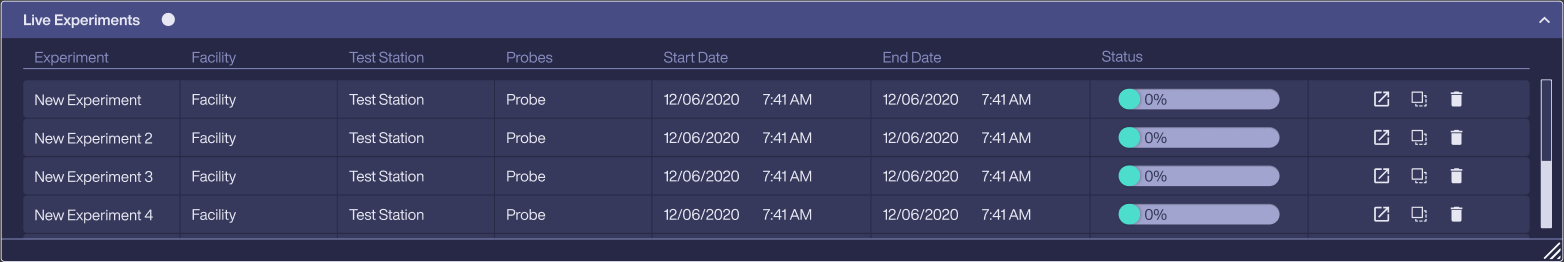

Live experiments get their own table with facility, test station, probe, timing and a progress bar, plus quick actions to open, duplicate or delete. Finished runs move to Saved Experiments, so what's running and what's done never mix.

Live Experiments table with four rows and progress bars
Live experiments
05

Let people mark what happened on the data

Every graph carries its full hardware path (Facility / Test Station / Stack / CMU / Cell), so a chart is never ambiguous. A toolbar covers zoom, select, pan, reset axis, autoscale, grid, spike lines and image export.

Selecting a range on the graph creates an Event with a label and time window, and events can be tagged. Anomalies become notes the whole team can find again.

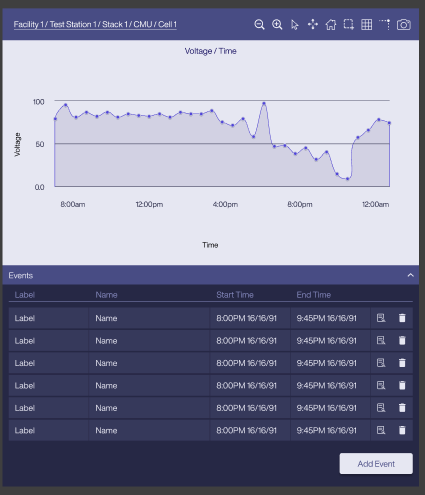

Voltage over time graph with a breadcrumb of the hardware path, a chart toolbar, and an Events table below with an Add Event button
Graph with events
06

Group data the way electrochemists think

Adding a visualization reuses the hardware tree, then offers data in three groups: Electrochemical (electrolyte resistance, interfacial capacitor, average power), Frequency domain (Bode and Nyquist plots, phase difference) and Time domain (voltage, current).

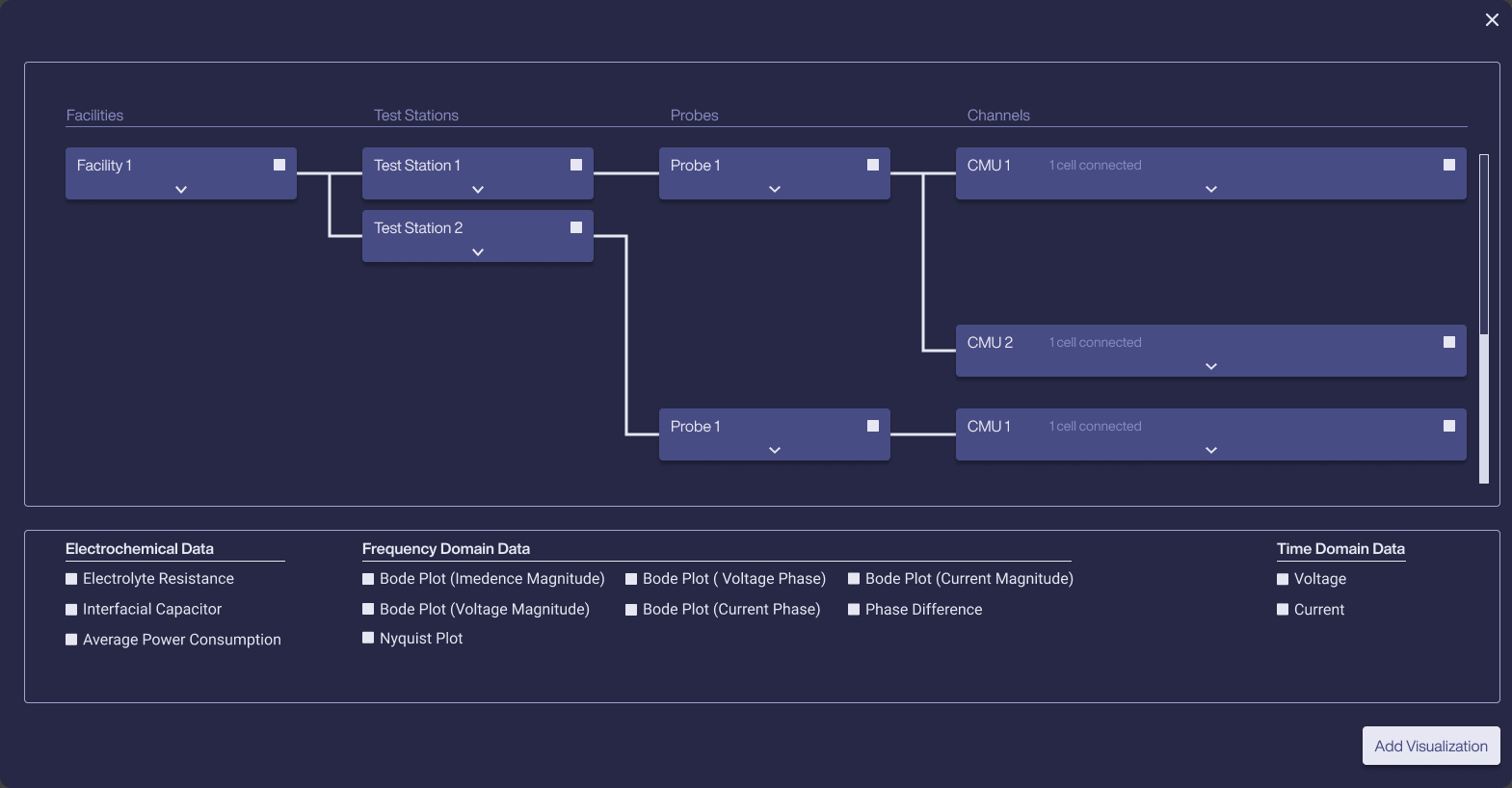

Add Visualization pop-up: a hardware tree on top and checkboxes grouped into Electrochemical Data, Frequency Domain Data and Time Domain Data
Add a visualization
07

Analysis in the same place

The Data panel brings analysis tools into the app: auto and cross correlation, linear and multiple regression, moving mean and variance, phase maps. Users pick experiments, tags and variables and a time range, then plot. Each analysis opens in its own tab.

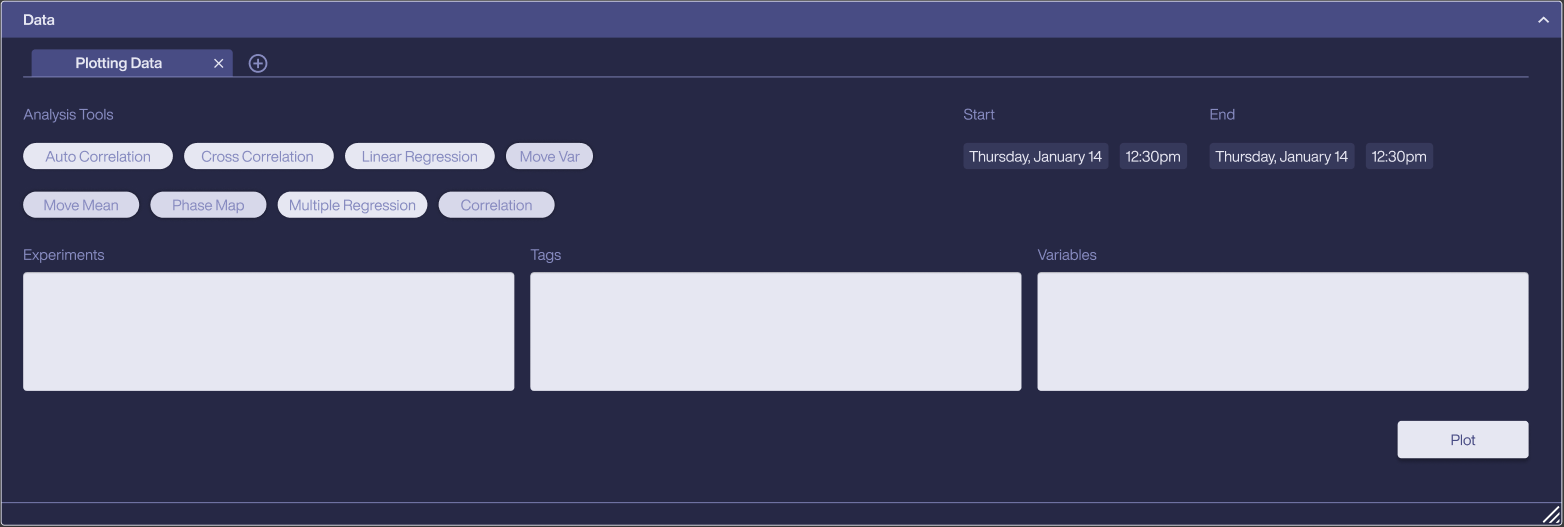

Data panel with a Plotting Data tab, analysis tool chips, start and end date pickers, Experiments, Tags and Variables fields and a Plot button
Data and analysis

Built as a system

Marc and I built the UI system from the ground up alongside the screens, so new features could be assembled from parts the team already trusted.

Sections

Collapsible, resizable panels

Every area of the app (hardware, tags, live and saved experiments, data, visualizations) is a panel with open, closed and empty states, so people arrange the workspace around the job in front of them.

Navigation

Nine sections, two widths

Dashboard, Experiments, Facilities, Users, Events, Data, Analytics, Settings and Feedback, each with a selected state, plus an icon-only rail for more room.

Charts

One graph component

The same graph, toolbar and events tab are used everywhere data is plotted, in four states from no events to many.

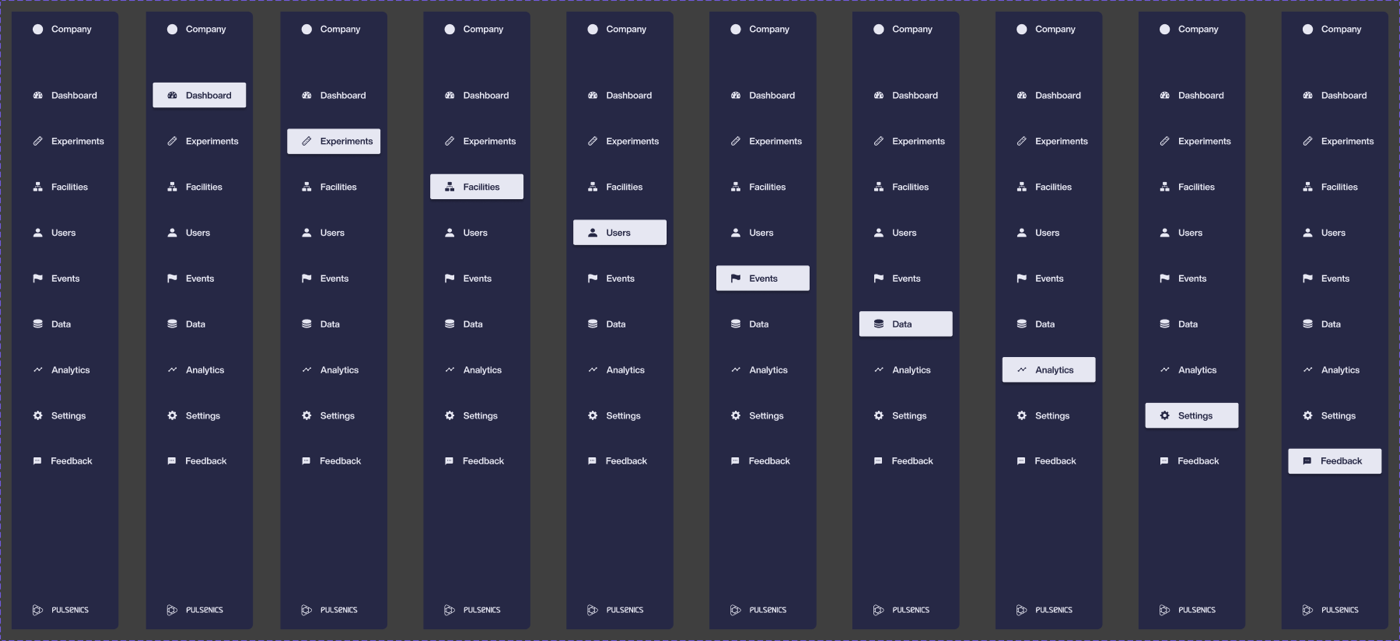

Ten copies of the side navigation, each with a different section selected
Navigation, one state per section

Colour

Space Cadet#262845 · dashboard
Midnight Blue#1B1463 · CTAs, focus, header
Pacific Blue#1DA1B2 · secondary brand
Turquoise#4DDDCC · tertiary brand
Cyber Yellow#FED405 · tertiary brand
Magnolia#E6E7F2 · light surfaces

What I'd refine next

Contrast

Secondary text and column headers sit close to the panel colour. I'd raise them to meet WCAG AA, which matters for people staring at data all day.

Inputs on dark

The light input fields are the brightest thing on screen. A darker field with a clear focus ring would keep attention on the data.

Hierarchy

Most panels carry the same visual weight. Giving live data more presence than setup controls would help scanning.

Credits

Designed with Marc Varone

Pulsenics System Software was designed by two of us. See more of Marc's work at marcvarone.com.
